Installing end stops on a roller shutter ?

Installing Conical End Stops

Do you have a Roller Shutter with strap, crank or motorised control? You may want to install conical end stops on the bottom slat.

Good to know:
AvosDim stock 2 conical end stops for Roller Shutter in black or white
– Dimensions: length 40mm — base diameter 25mm

end stops
end stops bottom slat

Necessary tools:

  • 1 measuring tape
  • 1 drill
  • 1 8mm bit

To start, mark your conical end stops 5cm in from the side tracks, then centre with the help of the end stop washers.

taking measurements
washer

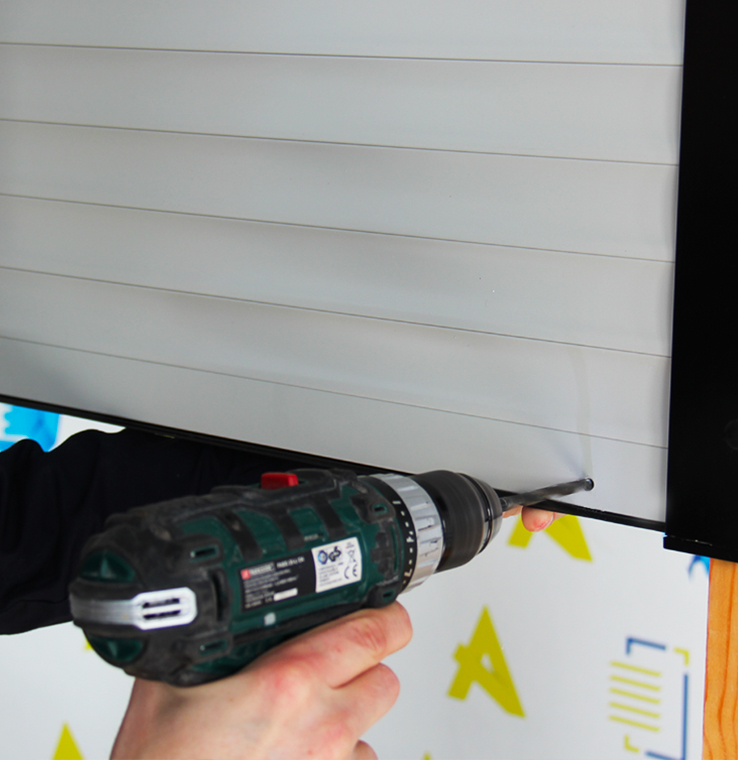

— Drill each side of the conical end stops with an 8mm drill bit
— Deburr if necessary

drilling bottom slat
drilled bottom slat

– Then screw fix end stops to the bottom slat.

fixing end stop
end stop installed

Voilà, your end stops are installed.
Yes, it's that simple!

end stop slat
roller shutter with end stops installed
