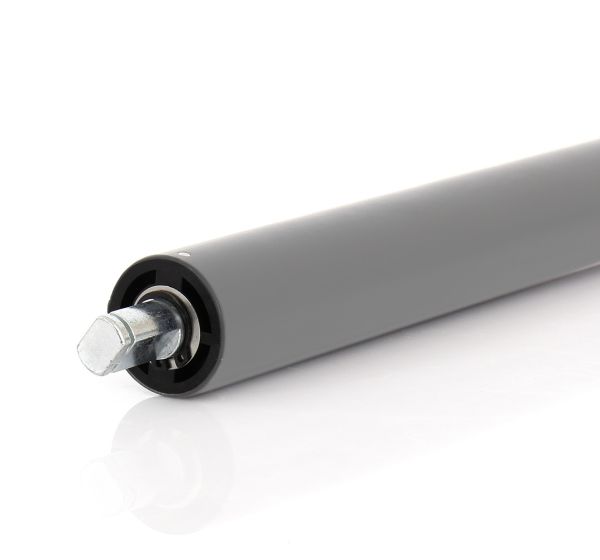

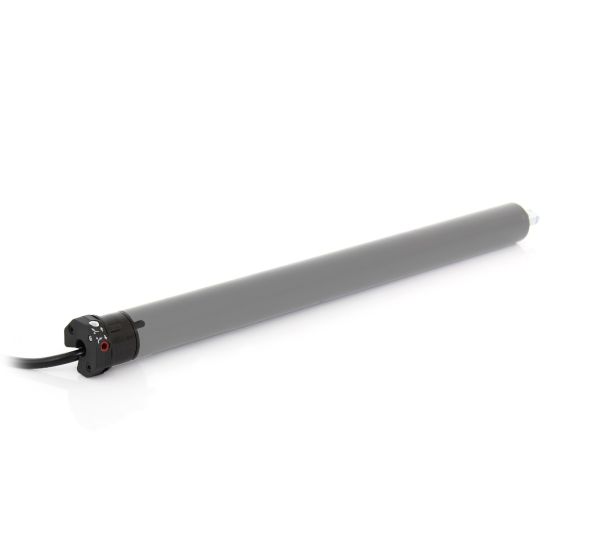

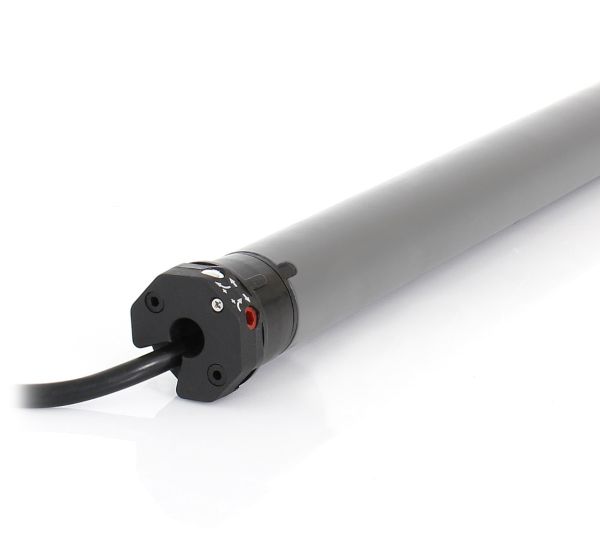

AvosDim roller shutter motor Ø35mm - remote control
- Product description
- Product manuals
- Lifts up to 26Kg
- Adaptable to restricted widths (motors from 395mm on short models)
- Compatible with AvosDim remotes and devices
Sign in with Facebook
Sign in with Google Product details
Compatibility
The 35mm diameter motor is adaptable with a variety of roller barrels - and will motorise all roller shutters and blinds with a corresponding weight. You can view available adapters in the dropdown menu once the motor strength is selected.
Avosdim wireless control motors are controlled using an Avosdim remote control (not provided). You can also configure them with Avosdim automation devices. Avosdim branded products are also compatible with Solutio products.
Configuration
Nm power:
The power needed depends on shutter curtain weight - this can be calculated from the height and width of the visible slat curtain and the weight of relevant slat material. The general ratio for motor power is 1Nm supports 2Kg.
Shutter curtain weight formula:
width (m) x height (m) x weight* (per m2)
* PVC: 4kg/m² or ALU: 4.5kg/m²
Motor adapters
Adapter sets are supplied with a wheel and a crown. One allows the motor to rotate the roller while the other manages stop limits.
Adapters must correspond to motor brand, diameter, and roller barrel type - if replacing identical motor no adapters are necessary. We stock adaptors for a variety of roller tube shapes including 60mm octagonal, ZF 54mm, ZF 64mm and more.
Motor supports
Support brackets are also essential. Fixed at one side, they are used to hold the motor head in place so it can power the barrel effectively.
Our selection accounts for the type of motor selected. To choose the correct bracket just reference the roller type and box size (if applicable).
The support suitable for short motors that we offer is QUOTI_QZ04, it is universal, therefore compatible with all types of shutter.
Specifications
| Motor power | Motor* | Speed |
| 10Nm court | 395mm | 17 rpm |
| 13Nm | 475mm | 14 rpm |
*Plus visible motor head of 19mm
Consumption: 230V / 50Hz
Capacity: 22 turns
Motor diameter: 35mm
Safety index: IP44
Certifications: CE, TUV (Germany), VDE (Germany), ROH
Remote control motor: Automation
When linked with the AvosDim 005313 automation box (sold separately), these roller shutter motors can go into full automation mode, controlled from you phone, from anywhere! The app is free and available on Apple and Android.
Practical as possible, the box is compatible with Alexa and Google Home connected speakers!
Remote control motor: AvosDim technology
AvosDim technology offers a range of remote control motors, developed for those who wish to modernise their shutters or blinds with a high quality motor at an economical price. Compatible with a wide range of remote control and automation, you can enjoy the future now.
Package contents
- AvosDim Ø35mm remote control motor
- 2m VVF four-core power cable - black
- Stop limit adjustment key
- Manual
Instruction manuals
/maxresdefault.jpg"
data-link=""
alt="Setting stop limits on AvosDim motors"
title="Setting stop limits on AvosDim motors"
/>
Information sheet
| Name | AvosDim roller shutter motor |
|---|---|
| SKU | MOT_RADIO_AVD_35 |
| Sku Fabriquant | MOT_RADIO_AVD_35 |
| Warranty (years) | 10 |
| Brand | AVOSDIM |
