Remote control RF receiver switch for switch motors - TEL_AC282

Usage: Control from a distance

AvosDim offer an economical and practical solution for converting your hard-wired switch control shutters to remote control.

The switch has an integrated receiver adapting your hard-wired switch control motor into a remote control motor. Replacing your current switch, you can then operate using the switch and with any paired AvosDim remote (sold separately), all without changing the motors.

The receiver is compatible with any AvosDim remote control, so can also be programmed with automation schedules depending on the remote purchased.

Design

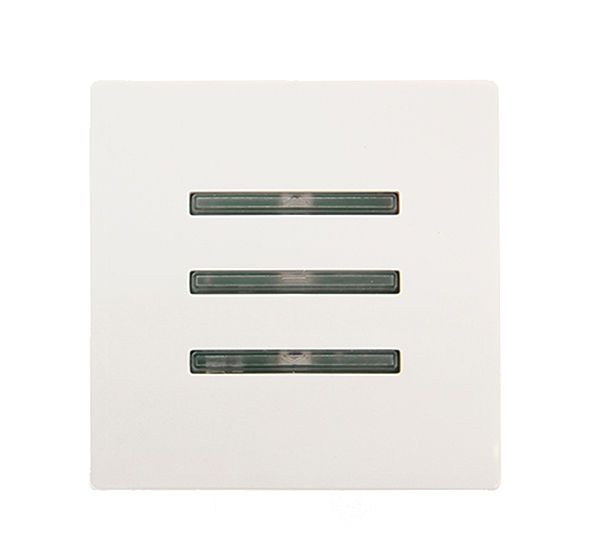

The remote control adapter switch has a compact and sleek design, fitting into any interior easily. Three bars (illuminated when activated) give you the controls for up, down and stop.

Specifications

• Power supply: 230V / 50Hz
• Maximum motor strength: 50Nm
• Maximum power: 500W
• Motors per switch: 1
• Maximum programmable remotes: 20
• Remote frequency: 433.92 Mhz
• Dimensions: 80 x 80 x 50 mm (suitable for 60mm recessed boxes)
• Functioning temperature: -20°C to + 55°C
• Compatible with all brands of wired switch motor (4 core cable)
• Compatible (once installed) with AvosDim remotes and automation clocks only

Package contents

• AvosDim remote control adapter switch
• instruction manual
