AvosDim motorisation kit ø40mm tube - switch control

Is it time to modernise your manual domestic roller shutter? AVOSDIM now offer a complete and simple solution in the form of an all-in-one wired switch motor kit. After assembling the tube, simply open the roller box and replace the old tube with the new one and screw closed.

Check the below requirements to see if your shutter is compatible with the 13Nm wired switch motor kit:

• Previous tube measures 40mm in diameter and is between 620mm and 1500mm wide
• Selected power is adequate (see formula below)

* Estimated weight of the slats: PVC 4kg/m² - aluminum 4.5kg/m² - wood 11kg/m²

If your roller shutter weighs up to 26Kg, 13Nm power is suitable.

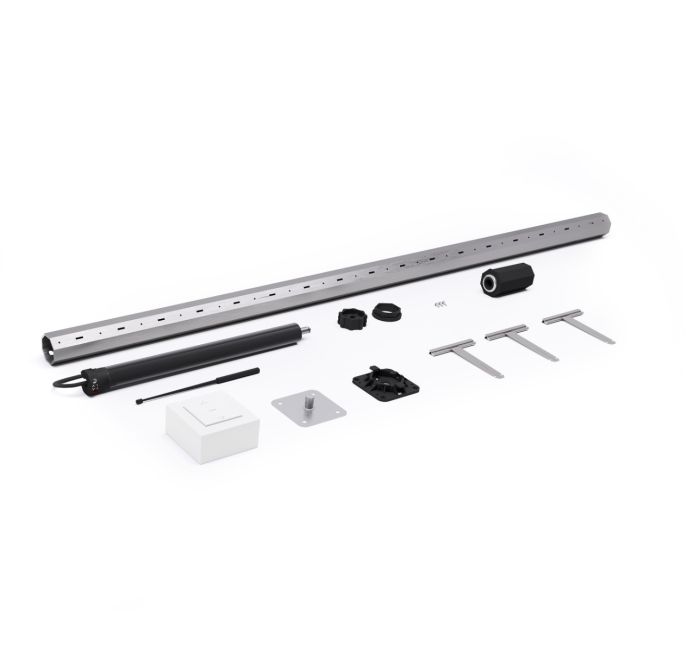

• 1 - Octagonal shaft ø40mm - recuttable W1500mm (x1)
• 2 - Ø40mm tube end with ball bearing (x1)
• 3 - Pivot plate with nipple ø12mm 75 x 75mm (x1)
• 4 - Motor support
• 5 - Flexible slat attachment clips
• 6 - Wired motor ø35mm - W475mm - 13Nm (x1)
• 7 - Wheel and crown adapters for 40mm octagonal tube
• 8 - Stop limit adjustment stylus (x1)
• 9 - Self-drilling screws (x3)
• 10 - AVOSDIM switch - surface / recess fit (x1)

• Diameter: 35mm
• Motor strength: 13Nm
• Weight limit: 26kg
• Speed: 14 rpm
• Power: 230V / 50Hz
• Cage capacity: 22 turns
• Protection index: IP44

AVOSDIM wired technology

AVOSDIM wired motor technlogy provides a reliable, good quality motor at an economical price. Modernising your manual shutters is easier than ever.
