Somfy ® motorisation kit ø40mm tube - switch control

Motorise your roller shutter

AVOSDIM offer a complete and simple solution to convert your manual shutter to motorised, the all-in-one SOMFY switch control motor kit. After assembling the motor and tube, simply open the roller box and replace the old tube with the new one and screw closed.

Check below to see if your shutter is compatible with this motorisation kit:

• Previous tube measures 40mm in diameter and is between 620mm and 1500mm wide
• Selected power is adequate (see formula below)

* Estimated weight of the slats: PVC 4kg/m² - aluminum 4.5kg/m² - wood 11kg/m²

Consult the power chart according to weight: [PDF] Choosing the power of your Somfy roller shutter motor

Is the motor power not enough for your required width? Opt for the longer length, you can discard the extra telescopic tube.

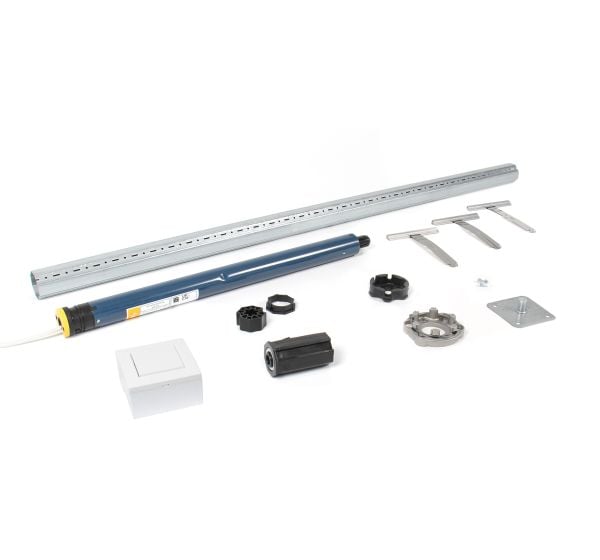

• 1 - Octagonal recuttable ø40mm alu tube - L1500mm (x1)
• 2 - SOMFY wired witch motor ø50mm - L450mm - 9Nm (x1)
• 3 - Rocker switch - surface/recess mounted (x1)
• 4 - Wheel and crown adapters for 40mm octagonal tube (x1)
• 5 - Ø60mm tube end with ball bearing (x1)
• 6 - Motor support LS40/LT50 9500659
• 7 - Motor support - universal
• 8 - Flexible slat attachment T clips (x3)
• 9 - Self-drilling screws (x3)
• 10 - Pivot plate ø12mm 75 x 75mm (x1)

• Diameter: 40mm
• Strength: 9Nm
• Speed: 14 trs /min
• Voltage: 230V
• Wattage: 100W
• Ampage: 0.5A
• Functioning time: 4min
• Trip temperature: 140°C
• Sound level (avg.): 54dBA
• Motor weight: 1.06kg
• Cage capacity: 40 tours
• Protection index: IP44
